Free Plan: 1912 Music Rack and Bookstand
An open-frame book rest that tilts and locks on a brass rod — the 1912 reading stand.
Free download. No signup required.
- Complete cut list and brass fittings
- Brass rod tilt mechanism
- Base assembly that will not rock
✓ Your music stand plan is downloading.
Download didn't start? Get the plan here.The stand is drawn up. What decides how clean it comes out is the bench it gets built on.
- A layout guide for a one- or two-car garage or a basement: which tools to buy in what order, and where each one stands so the work flows in one direction.
- What to read first: the layout chapter, then the chapter on tool order. A project like this one asks for a vise, good light and a clear bench before it asks for another machine.
- A digital guide sold through ClickBank, with a 60-day refund window stated on the vendor's page.
Disclosure: Some links on this page are affiliate links. If you buy through them, I may earn a commission at no additional cost to you.

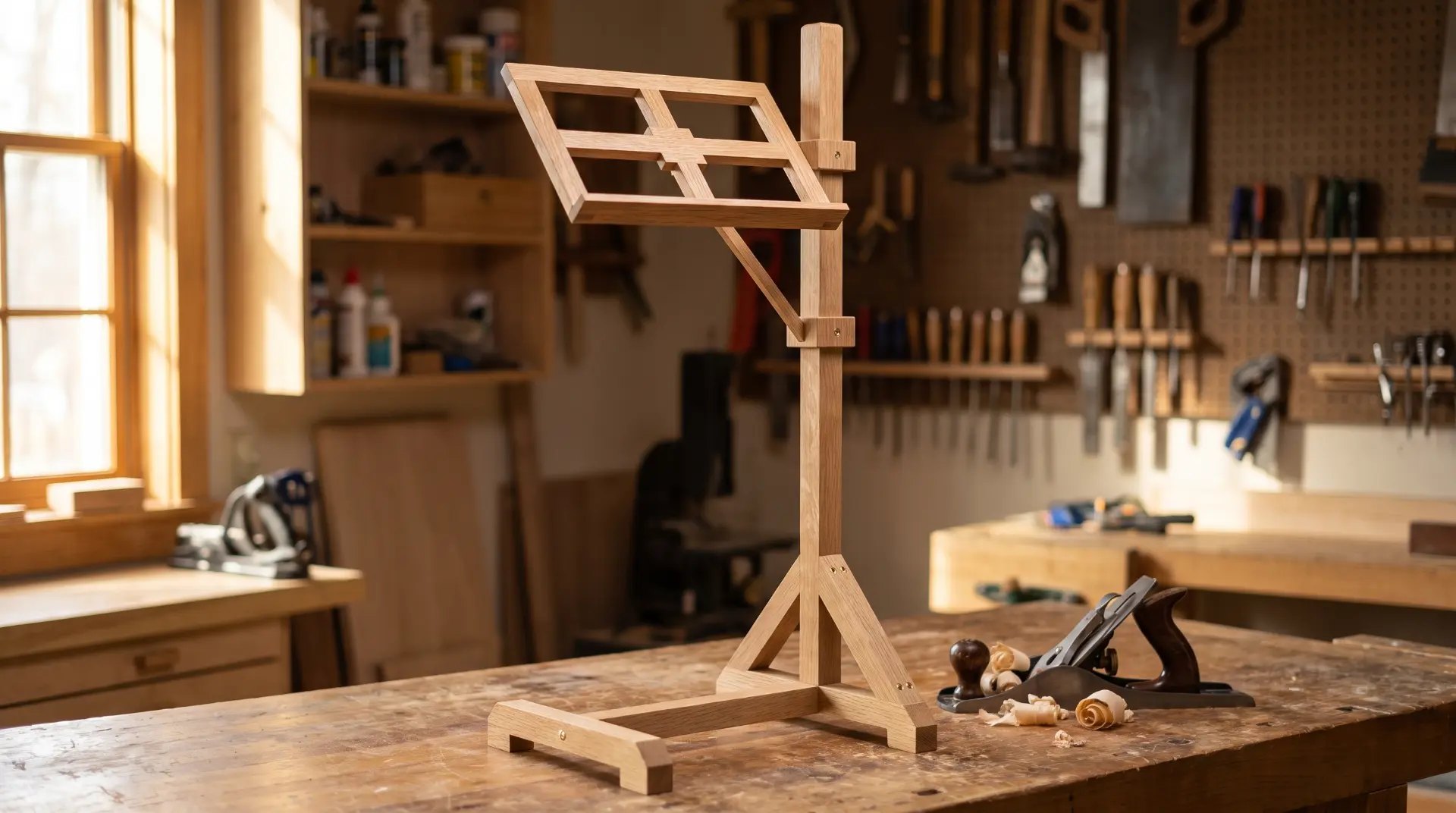

One post about three feet tall, a cross-lap base, two braces, and a book rest cut as an open frame from a half-inch board. A brass rod and a brass rail let it tilt and lock wherever you set it. Eight round-head screws hold the rest together.
It was drawn in 1912 for sheet music. It works just as well for a book, a recipe, a repair manual, or a tablet, which is why people still build it.
The plan covers the full cut list, the cross-lap base, the brace layout, the brass tilt mechanism, and the drilling sequence for the hardware.
Project at a Glance
- Difficulty
- Intermediate (cross-lap base plus brass fitting and bending)
- Main materials
- 1-1/8 inch square stock for post, base and braces, a 1/2 x 8 x 13 inch board for the open-frame rest, two gauge clamps, a lip strip, a 1/4-inch brass rod, a brass strip, eight round-head brass screws
- Build time
- 2-3 shop days, plus finish
- Tools needed
- Saws, mortising tools, drill, metalworking tools, vise and clamps, sandpaper and finish supplies
- Safety
- Brass drilling — clamp the work, see the shop tip below
- Source
- Popular Mechanics Handbooks, 1912 (public domain)
Two things worth knowing before you start:
Glue the base cross on a surface you have actually checked — a jointed board or a saw table, not the bench. Four feet that are not coplanar give you a rock, and on a stand this tall a rock is what lets the whole thing go over sideways when somebody leans on it. Second: drill the brass rod in a vise, never by hand. Brass grabs hard right as the bit breaks through and will spin a loose piece out of your fingers. Clamp it, back the hole with scrap, and go slow.
The wood on this one is quick. The brasswork decides how it turns out — and none of it needs a big machine or much floor space.
