Free Plan: 1912 Sewing Table
Four posts, nine rails, three framed panels, two drawers and two drop leaves — a 1912 oak table built over several weekends.
Free download. No signup required.
- Full PDF plan
- Cut list, tenon sizes & dimensions
- 18 steps incl. drawers and drop leaves
✓ Your plan is downloading.
The plan is yours. Now the part the plan does not explain.
The sewing table plan is yours to keep — cut list, tenon sizes, panel grooves, drawer slides, hinge work, all eighteen steps. It is several weekends of work. What the plan does not explain is why five of its parts are deliberately left unfastened, and that reasoning applies to every piece you build after this one.
Download didn't start? Get the plan here.Why the step is written that way
Woodworking Secrets is a technique guide rather than a plan library — joinery, cutting, material behaviour and project sequencing. It works on the reasoning a plan assumes you already have.
Show me Woodworking Secrets →Disclosure: I may earn a commission if you buy through this link. It doesn't cost you extra.

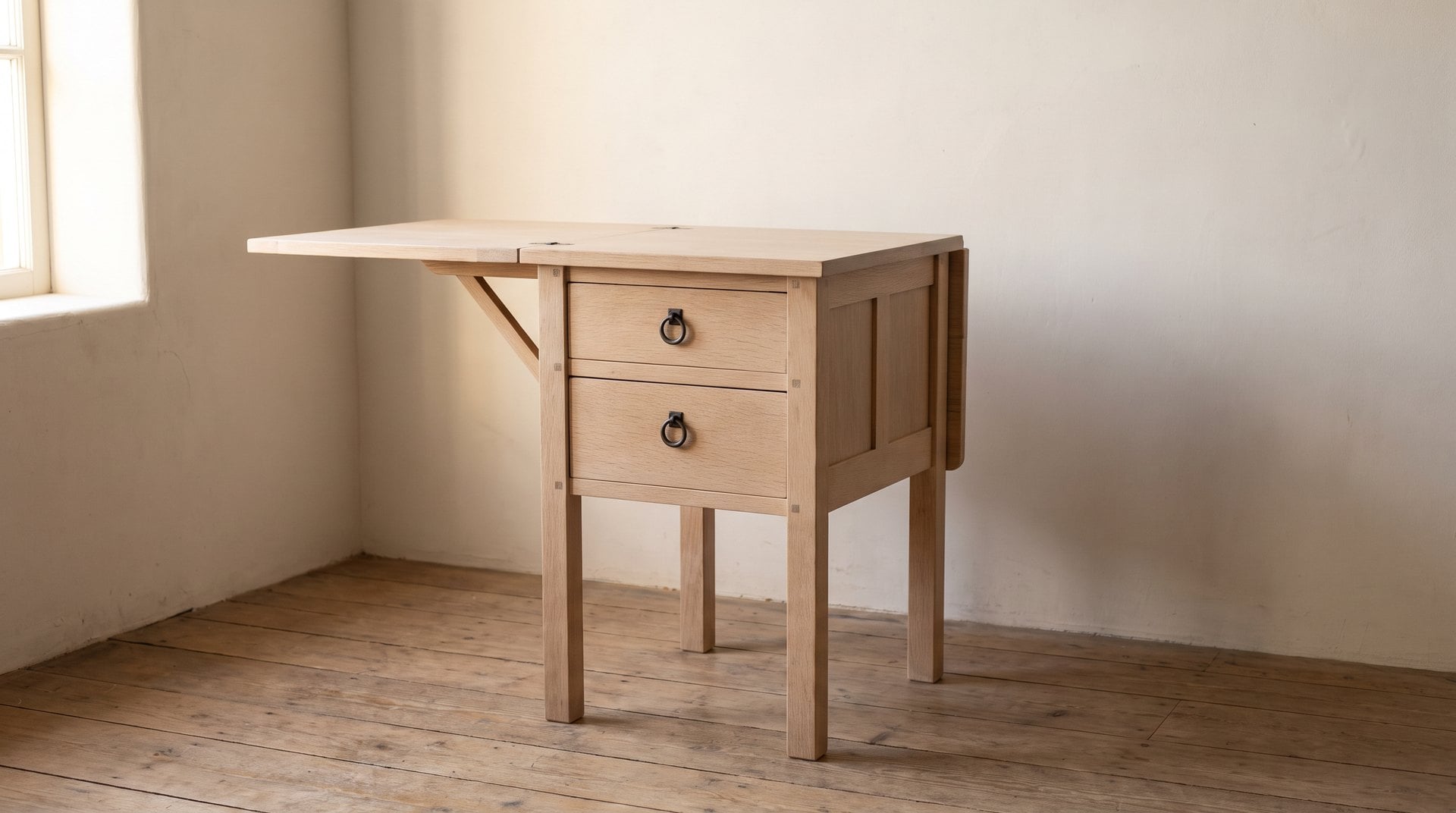

Closed, it stands in a corner and takes up eighteen inches. Open, both leaves come up and you have a work surface wide enough to lay out fabric.
This plan comes from Mission Furniture, How To Make It, Part 3, published by Popular Mechanics in 1912 and long out of copyright. Four posts, nine rails, three framed panels, an eighteen inch top, two ten inch drop leaves on flush-mortised butt hinges, two drawers running on four slides, and two small hinged brackets that carry the leaves when they are up.
It is the most demanding plan on this site. The source rates it Advanced and puts it at several weekends plus finishing time, and that is honest: mortise and tenon joinery in two different sizes, grooved panels, fitted drawers and hardware that has to sit flush. If that is the piece you want, everything you need is measured and in the PDF.
Project at a Glance
- Difficulty
- Advanced
- Main materials
- Oak, four 2-inch butt hinges, bracket hinges, pulls, glue, screws, stain and wax or shellac
- Build time
- Several weekends, plus finish
- Tools needed
- Backsaw, mortising tools, plow plane or groove cutter, chisels, square, clamps, hinge mortising tools, drawer-fitting plane, scraper, sander
- Joinery
- Mortise and tenon throughout — 1 x 3/8 inch on side and back rails, 3/4 x 7/8 inch on front rails; 1/4 inch panel grooves; floating panels and floating drawer bottoms
- Safety
- Two moving leaves with hinge pinch points — see the note below before you fit them
- Source
- Popular Mechanics Handbooks, 1912 (public domain)
Before you glue anything:
Five parts of this table are meant to stay loose, and the plan says so twice. The three panels sit in their grooves without glue and without pins. The two drawer bottoms let a quarter inch into the sides and the front and do not get nailed to them — nail a drawer bottom and the first humid week swells the whole box sideways until the drawer jams. Anything that spans across the grain of the piece holding it gets captured, not attached. And mark your rails before you cut tenons: all nine are the same stick, but side and back rails stand with the two inch face outward while the front rails lie with the two inch face upward to carry the drawers, and their tenons are cut to different sizes.
Here is the thing about a plan like this one. It gives you every dimension, every tenon size, every step in order — and it still cannot tell you what the wood is going to do after you let go of the clamps.
That is the layer underneath the plan: why a panel floats, why a drawer bottom is not nailed, why the same board behaves differently in January than in July. It is the part that separates furniture that still works in ten years from furniture that looked right on the day it was finished.
Recommended Next Step
The layer a plan does not cover
Woodworking Secrets is a technique book rather than a plan library — joinery, cutting, material behaviour and clean project sequencing. It is aimed at the part this plan takes for granted: knowing why a step is written the way it is.
If the floating panels and the unfastened drawer bottoms on this build made something click, that is the layer it works on.
Woodworking Secrets
A technique guide covering joinery, cutting, material behaviour and project sequencing.
Disclosure: I may earn a commission if you buy through this link. It doesn't cost you extra.
Several weekends, and a table that opens up when it needs to
Grab the plan, mark your rails before you cut a single tenon, and leave the panels and the drawer bottoms loose.
